Run your network with ease
Boost network efficiency with Cisco UCS fabric interconnects and fabric extenders—part of our Unified Fabric solution for data center networks.
Connect and control your network with better efficiency
Extend your fabric architecture and make managing your data center network simpler with a single management domain.
Cisco UCS Fabric Interconnects
Connect and manage your network with fabric interconnects, part of the Cisco Unified Computing System.
UCS 6664 Fabric Interconnect
- 64 ports
- Supports 10/25/50/100-Gigabit Ethernet
- 16 unified ports for 10/25/50G Ethernet or 16/32/64G Fibre Channel
- Up to 11.6 Tbps throughput
UCS 6652 Fabric Interconnect
- 52 ports
- Supports 10/25/50-Gigabit Ethernet
- 16 unified ports for 10/25/50G Ethernet or 16/32/64G Fibre Channel
- Up to 8.4 Tbps throughput
UCS 6536 Fabric Interconnect
- 36 ports
- Supports 1/10/25/40/100-Gigabit Ethernet or FCoE
- 4 flexible unified ports (16 ports of 8/16/32G FC and 10/25/100G Ethernet)
- Up to 7.42 Tbps throughput
UCS 6400 Series Fabric Interconnects
- 54 or 108 ports
- Supports 1/10/25/40/100-Gigabit Ethernet or FCoE
- 8 or 16 unified ports (10/25 GE or 8/16/32-Gbps FC)
- Up to 3.82 Tbps (6454) / 7.42 Tbps (64108) throughput
UCS 9108 100G Fabric Interconnect
- Exclusively for X-Series Direct
- Supports 1/10/25/40/100-Gigabit Ethernet or FCoE
- 2 unified ports for Fibre Channel connectivity
- Up to 1.6 Tbps throughput
Cisco UCS Virtual Interface Cards (VIC)
Unify connectivity and control.

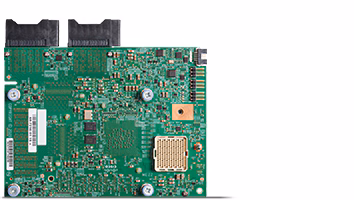

UCS VIC 15000 Series
- 10/25/50 Gbps: 15425 (PCIe) & 15427 (mLOM) for C-Series; 15420 (mLOM) & 15422 (Mezz) for X-Series
- 40/100 Gbps: 15235 (PCIe) & 15237 (mLOM) for C-Series; 15230 (mLOM) for X-Series
- 10/40 Gbps: 15411 (mLOM) for B-Series
UCS VIC 1400 Series (C-Series)
- 10/25 Gbps: 1455 (PCIe), 1457/1467 (mLOM)
- 40/100 Gbps: 1477 (mLOM), 1495 (PCIe), 1497 (mLOM)
Cisco UCS Intelligent Fabric Modules (IFM)
Converge your modular chassis networking for simplicity and scalability.
UCS X9516 X-Fabric PCIe Gen5 switch module
- X-fabric module for UCS X9508 chassis
- Ultra-low-latency PCIe Gen5 switching, SmartNIC support, and policy-based GPU/NIC provisioning
UCS 9108 25G Intelligent Fabric Module
- 8 25-Gbps uplink ports
- Lossless and deterministic converged fabric
UCS 9108 100G Intelligent Fabric Module
- 8 100-Gbps uplink ports
- Lossless and deterministic converged fabric
Cisco UCS Fabric Extenders
Expand and converge your blade chassis networking for simplicity and scalability.
UCS 2408 Fabric Extender
- 8 25-Gbps uplink ports
- 1.04 Tbps switching performance
- Up to 320 Gbps of I/O to the chassis
UCS 2304 Fabric Extender
- 4 40-Gbps QSFP+ uplink ports
- Up to 320 Gbps of I/O to the chassis
- 4 40-Gbps Ethernet ports to chassis midplane
