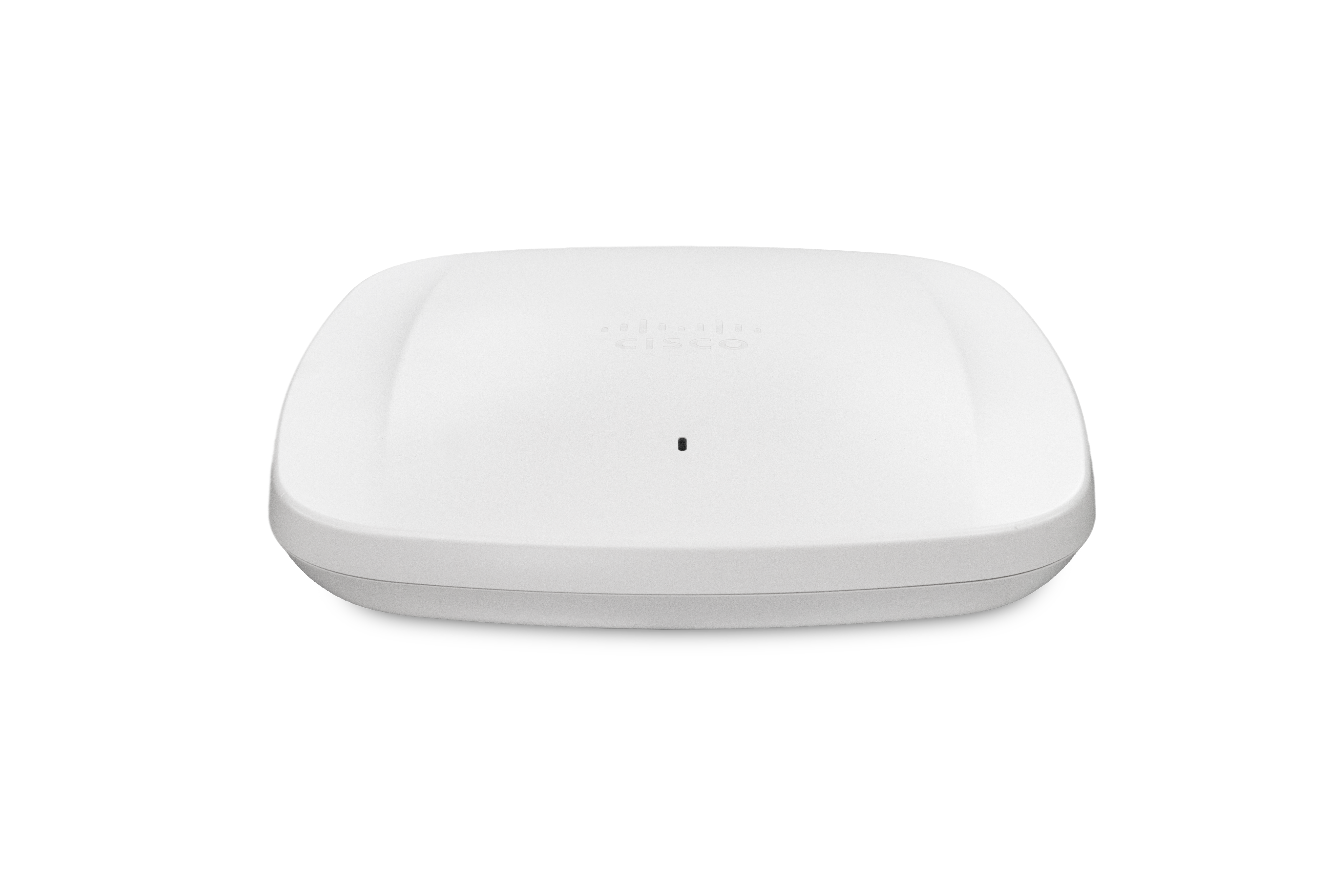

MR57
Tri-band 802.11ax-compatible access point with separate radios dedicated to security, RF management, and Bluetooth® coupled with dual Ethernet ports and a USB port for added connectivity options.
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Software configurable flex radio architecture for 6 GHz support
MR57 supports a software defined flex radio which can be toggled between a 5 GHz and 6 GHz. This provides an option to operate MR57 in either a dual 5 GHz configuration or a true tri-band configuration. Tri-band configuration unlocks the use of new spectrum in the 6 GHz frequency range which provides additional channels to increase throughput and reduce interference and noise from legacy devices. 6 GHz support ensures that the MR57 supports future technologies.
High Performance 802.11ax compatible wireless
The Cisco Meraki MR57 is a cloud-managed 4x4:4 802.11ax compatible access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, retail shops, and hotels, the MR57 offers high throughput, enterprise-grade security, and simple management.
Support for dual Ethernet ports to enable high availability
MR57 will support dual 5 Gigabit mGig Ethernet ports for high availability or for link aggregation. These ports can also be used for power-sharing to power up the AP and fully support the required functionality. The secondary Ethernet port can also be used for power and data sharing* or in a high availability mode* for added resiliency.
- Four 4:4 MU-MIMO 802.11ax compatible
- 7.78 Gbps tri-radio aggregate frame rate
- 24x7 real-time WIDS/WIPS and spectrum analytics via dedicated fourth radio
- Integrated Bluetooth Low Energy beacon and scanning radio
- Dual 5 Gbps mGig ethernet port support
- USB 2.0 host interface (Type A connector) with 9.5W power budget
- Enhanced transmit power and receive sensitivity
- Full-time Wi-Fi location tracking via dedicated third radio
- Integrated enterprise security and guest access
- Application-aware traffic shaping
- Optimized for voice and video
- Self-configuring, plug-and-play deployment
Features:
Tri–radio aggregate frame rate of up to 7.78 Gbps*
A 6 GHz 4x4:4, 5 GHz 4x4:4 and 2.4 GHz 4x4:4 radio offer a combined tri–radio aggregate frame rate of 7.78 Gbps*, with up to 4,804 Mbps in 6GHz band, 2,402 Mbps 5 GHz band and, 574 Mbps in the 2.4 GHz band. Technologies like transmit beamforming and enhanced receive sensitivity allow the MR57 to support a higher client density than typical enterprise-class access points, resulting in better performance for more clients, from each AP.
Multi User Multiple Input Multiple Output (MU-MIMO)
With support for features of 802.11ax, the MR57 offers DL and UL MU-MIMO and OFDMA for more efficient transmission to multiple clients. Especially suited to environments with numerous mobile devices, MU-MIMO and OFDMA enables multiple clients to receive data simultaneously. This increases the total network performance and improves the end user experience.
Bluetooth Low Energy Beacon and Scanning Radio
An integrated Bluetooth radio provides seamless deployment of BLE Beacon functionality and effortless visibility of Bluetooth devices. The MR57 enables the next generation of location-aware applications while future proofing deployments, ensuring it’s ready for any new customer engagement strategies.
Automatic Cloud-Based RF Optimization
The MR57’s sophisticated and automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The RF data collected by the dedicated fourth radio is continuously fed back to the Meraki cloud.
Integrated Enterprise Security and Guest Access
The MR57 features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and Enterprise authentication with 802.1X and Active Directory integration provide wired-like security while still being easy to configure.
Dedicated Scanning Radio Delivers 24x7 Air Marshal and RF analytics
The MR57’s dedicated tri-band scanning and security radio continually assess the environment, characterizing RF interference and containing (in 2.4GHz and 5GHz only, since 6GHz mandates PMF) wireless threats like rogue access points.
Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) Integration
Meraki Systems Manager natively integrates with the MR57 to offer automatic, context-aware security. Systems Manager’s self-service enrollment helps to rapidly deploy MDM without installing additional equipment, and then dynamically tie firewall and traffic shaping policies to client posture.
Application-Aware Traffic Shaping
The MR57 includes an integrated layer 7 packet inspection, classification, and control engine, enabling the configuration of QoS policies based on traffic type, helping to prioritize mission critical applications while setting limits on recreational traffic like peer-to-peer and video streaming. Policies can be implemented per network, per SSID, per user group, or per individual user for maximum flexibility and control.
Voice and Video Optimizations
Industry-standard QoS features are built-in and easy to configure. Wireless Multimedia (WMM) access categories, 802.1p, and DSCP standards support, all ensure important applications get prioritized correctly, not only on the MR57, but on other devices in the network.
Self-configuring, Self-Maintaining, Always Up-to-Date
When plugged in, the MR57 automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. Administrators can schedule automatic firmware upgrades for their dashboard network seamlessly. This ensures the network is kept up-to-date with bug fixes, security updates, and new features.
Meraki Health
MR57 will support all the latest and greatest analytics to provide machine learning-based anomaly detection, server root cause analysis, wireless client scoring based on performance and connectivity metrics and network benchmarking for networks of similar size and vertical.
Specifications:
| Category | Specifications |
|---|---|
| Radios | 2.4 GHz 802.11b/g/n/ax client access radio 5 GHz 802.11a/n/ac/ax client access radio 6 GHz 802.11ax client access radio 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio 2.4 GHz Bluetooth Low Energy radio with beacon and scanning support concurrent operation of all five radios |
| Antenna | Integrated omni-directional antennas (4.5 dBi gain at 2.4 GHz, 5.5 dBi gain at 5 GHz, and 5.5 dBi gain at 6GHz) |
| Interfaces | 2x 100/1000/2.5G/5G BASE-T Ethernet (RJ45) 1x DC power connector (5.5 mm x 2.5 mm, center positive) |
| Mounting | All standard mounting hardware included (AIR-AP-BRACKET-2) Desktop, ceiling, and wall mount capable Ceiling tile rail (9/16, 15/16, or 1 ½” flush or recessed rails), assorted cable junction boxes |
| Physical Security | Kensington lock slot Concealed mount plate with anti-tamper cable bay |
| Environment | Operating temperature: 32 °F - 104 °F (0 °C - 40 °C) Humidity: 5% to 95% non-condensing |
| Reliability | Mean time between failure (MTBF): 998,440 hrs at +25° C operating temperature |
| Physical Dimensions | 260 mm x 260 mm x 56 mm, including desk-mount feet or mount plate Weight: 1.7 kg |
| Quality of Service | Advanced power save (U-APSD) WMM access categories with DSCP and 802.1p support Layer 7 application traffic identification and shaping |
| Mobility | PMK, OKC, and 802.11r for fast layer 2 roaming Distributed or centralized layer 3 roaming |
| Analytics | Embedded location analytics reporting and device tracking Global layer 7 traffic analytics reporting per network, per device, and per application |
| LED Indicators | One power/booting/firmware upgrade status |
| Regulatory | RoHS For additional country-specific regulatory information, please contact Meraki sales |
| Warranty | Indoor access point Lifetime hardware warranty with advanced replacement included |
| IEEE Standards | 802.11a, 802.11ac, 802.11ax, 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11k, 802.11n, 802.11r, 802.11w and 802.11u |
| Safety Approvals | CSA and CB 60950 & 62368 Conforms to UL 2043 (Plenum Rating) EN 60601 Certified |
| Radio Approvals | Canada: FCC Part 15C, 15E, RSS-247 Europe: EN 300 328, EN 301 893 Australia/NZ: AS/NZS 4268 Mexico: IFT, NOM-208 Taiwan: NCC LP0002 For additional country-specific regulatory information, please contact Meraki Sales |
| EMI Approvals (Class B) | Canada: FCC Part 15B, ICES-003 Europe: EN 301 489-1-17, EN 55032, EN 55024 Australia/NZ: CISPR 22 Japan: VCCI |
| Exposure Approvals | Canada: FCC Part 2, RSS-102 Europe: EN 50385, EN 62311, EN 62479 Australia/NZ: AS/NZS 2772 |
Documentation:
Download the MR57 (.PDF)
