CW9177E

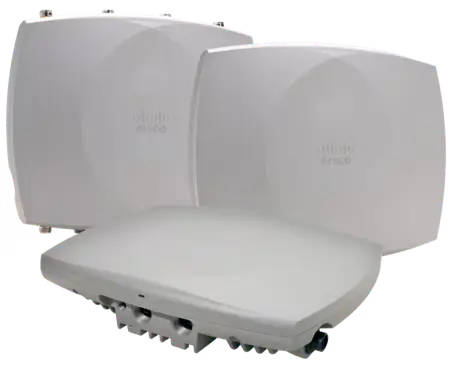

Engineered for demanding outdoor environments, the 9177 Series combines Wi-Fi 7 (802.11be) performance with purpose-built features for flexible, intelligent deployments
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
Need enterprise-grade Wi-Fi that performs outdoors as well as it does indoors? The 9177 Series delivers. Built on a tri-radio, tri-band architecture across 2.4 GHz, 5 GHz, and 6 GHz, these Wi-Fi 7 access points support up to 12 spatial streams, providing the coverage, capacity, and reliability your outdoor environments demand.
Engineered for demanding outdoor environments, the 9177 Series combines Wi-Fi 7 (802.11be) performance with purpose-built features for flexible, intelligent deployments:
- Integrated GPS/GNSS for precise location services
- Flexible antenna options: internal omnidirectional, directional, and external, to adapt to any deployment scenario
- Dedicated scanning radio with Cisco CleanAir® Pro for proactive interference mitigation
Whether you’re extending coverage across a stadium, campus, industrial yard, or smart city deployment, the 9177 Series delivers the speed, reliability, and intelligence to connect your organization today and future-proof it for the AI-driven innovations of tomorrow.
Features:
| Feature | Benefit |
|---|---|
| Wi-Fi 7 for outdoors | Supporting Wi-Fi 7 (802.11be), the 9177 Series access points are designed with an IP67 rating for incredible performance in most challenging outdoor environments. |
| Multiple models for specific coverage | Design your outdoor network for maximum performance and coverage with three access point models to choose from. With internal omnidirectional, internal directional, and external antenna connector designs, you can get the specific unit for the coverage you need. |
| 10G Multigigabit Ethernet and SFP+ port | Choose your uplink connection type for a seamless install and upgrade with flexibility. |
| Bluetooth (BLE) | The integrated BLE 6.0 radio enables location-based use cases such as asset tracking, wayfinding, and analytics. |
| Accelerometer | In the CW9177I and CW9177D models, a built-in accelerometer allows continuous post-deployment verification of how the access point is installed. For the CW9177E model, in combination with CW-ANT-T-D4-N antenna, the accelerometer is also incorporated |
| Cisco Ultra Reliable Wireless Backhaul (URWB) | URWB provides ultra-reliable wireless connectivity for moving assets or to extend the network where running fiber isn’t feasible or is too costly. It provides near-zero latency (<10 ms) and zero packet loss with seamless handoffs. |
| AP power optimizations (AP Power Save mode) | AP Power Save mode allows the access point to reduce its power consumption by shutting off radios during off-hours and weekends – while still being smart enough to reengage all features should they be needed. This both saves power and reduces the carbon footprint of running a wireless network. |
| Built-in GNSS/GPS | A built-in GNSS/GPS receiver supports Automated Frequency Coordination (AFC) and enables the Global Use AP to intelligently select regulatory domain and location. |
| CleanAir Pro | Cisco CleanAir Pro applies Cisco’s industry-leading RF interference detection and classification to the 2.4-GHz, 5-GHz, and 6-GHz bands. |
| Client steering | Client steering helps clients that are 6-GHz capable leave the 5-GHz radio and connect to the 6-GHz radio. Wi-Fi 6E clients are automatically directed to connect to the 6-GHz radio to take advantage of the benefits it offers and free up the 2.4-GHz and 5-GHz radios for legacy clients. |
Benefits:
Specifications:
| Item | Specification |
|---|---|
| Part numbers/ models | CW9177I CW9177D CW9177E |
| Software | Cisco IOS® XE Software Release 26.2.1 or 26.1.3 or later or Meraki MR32.2.x or later |
| Supported wireless LAN controllers | Catalyst 9800 Series Wireless Controllers (physical or virtual) Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode |
| Interfaces | 1x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45) 1x 1/10G Ethernet SFP/SFP+ Management console port (RJ-45) |
| LED Indicators | Front status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (W x L x H) | CW9177I, CW9177D, CW9177E (without mounting brackets): 352.2 mm x 270 mm x 76.2 mm (13.8 x 10.6 x 3 in.) |
| Weight | CW9177I and CW9177D Access point Weight: 4.11kg CW9177E Access point weight: 4.12kg |
| Certifications | Wi-Fi Alliance: Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, WPA3-R3, WPA3-Suite B, Enhanced Open Security Bluetooth SIG: Bluetooth Low Energy |
Documentation:
Download the CW9177E (.PDF)
