CW9172I

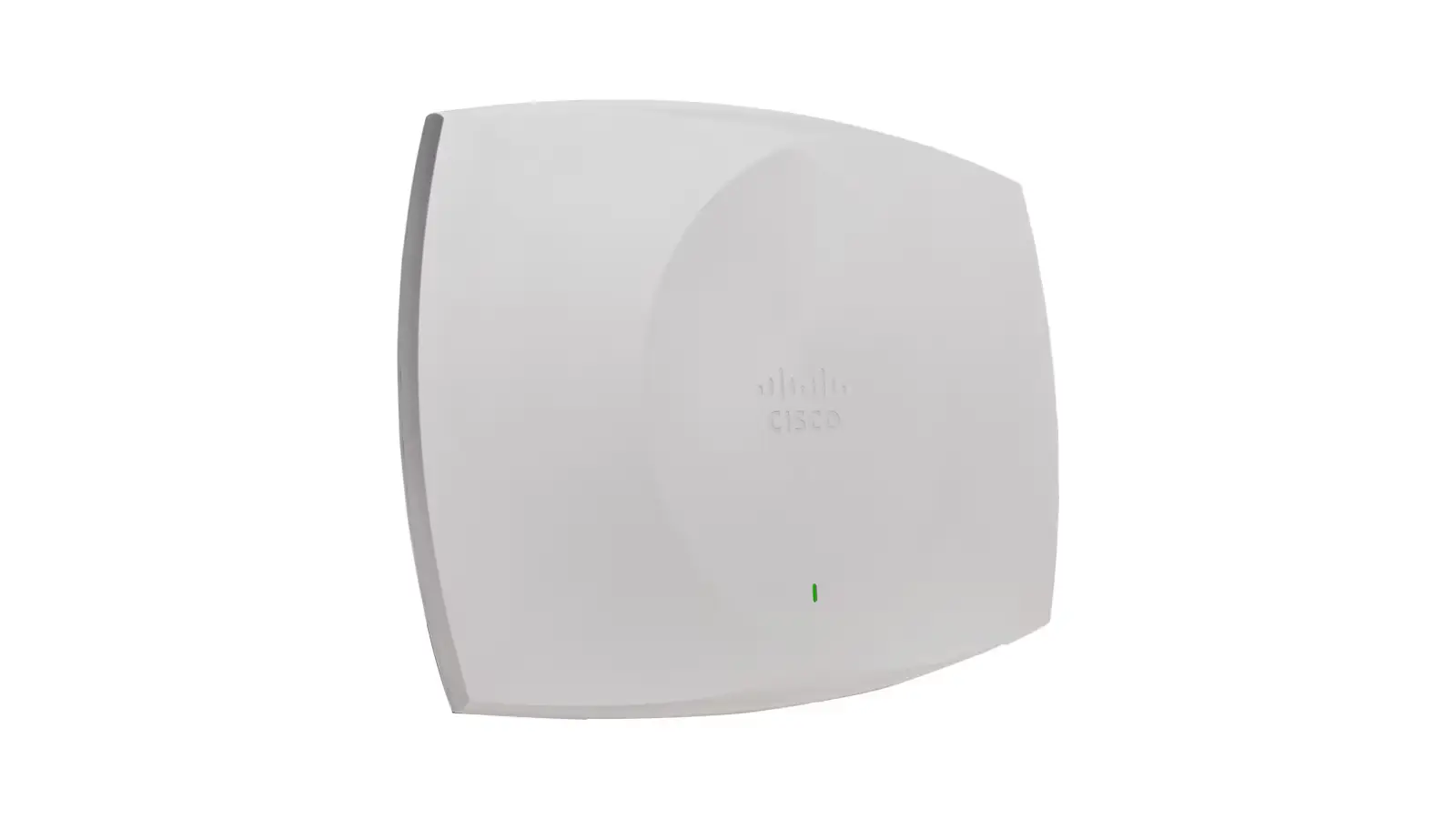

The Cisco Wireless 9172 Series Wi-Fi 7 access points are high-performance
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
The Cisco Wireless 9172 Series Wi-Fi 7 access points are high-performance wireless solutions designed for environments like boutique hotels, healthcare clinics, retail stores, student housing, and distributed business locations such as regional branches and logistics hubs. With tri-radio functionality across 2.4-GHz, 5-GHz, and 6-GHz bands, the 9172 Series provides reliable, high-speed connectivity (frame rate up to 9000 Mbps) for spaces with low to moderate device density. Flexible deployment options—cloud, on-premises, or hybrid—allow seamless integration into existing networks.
For customers, the 9172 Series delivers reliable Wi-Fi 7 performance, enabling advanced applications like IoT integration, telehealth, and seamless customer experiences. The primary business benefit is future-ready connectivity with energy efficiency, reducing power consumption while supporting evolving network demands. This makes the 9172 Series a cornerstone for modernizing and optimizing network infrastructure.
Features:
| Feature | Benefit |
|---|---|
| Tri-radio Wi-Fi 7 (2.4, 5, and 6 GHz) | Delivers reliable, high-speed connectivity for modern devices. |
| Aggregate data rate of 9000 Mbps | Supports bandwidth-intensive applications like streaming and IoT. |
| Cloud, on-premises, or hybrid management | Enables flexible, scalable deployment across diverse environments. |
| IoT radios (BLE, 802.15.4) | Powers smart spaces with asset tracking and automation. |
| Compact design with mount compatibility | Simplifies installation and reduces deployment time. |
| Power efficiency (30W and 45W options) | Reduces operational costs and supports sustainability goals. |
| Moderate-density radio configurations (9172I) | Optimizes performance for specific use cases like retail or healthcare. |
| Multiple Ethernet ports (9172H) | Enhances connectivity for wired devices like point of sale and IP TVs. |
| Dual power options (PoE/DC) (9172I) | Offers deployment flexibility in older or temporary spaces. |
Benefits:
Specifications:
| Product | Specifications |
|---|---|
| Part numbers | Cisco Wireless 9172 Access Points: Internal antennas CW9172I: Indoor access point with omnidirectional antennas CW9172H: Wall Plate, with Internal omnidirectional antennas |
| Software | Cisco Wireless 9172I – Cisco IOS XE Software Release 17.15.2b or later Cisco Wireless 9172H – Cisco IOS XE Software Release 17.17.1 or later |
| Supported Wireless LAN controllers | Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual) Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode. |
| Integrated Antenna | CW9172I 2.4GHz: Peak gain 4dBi, internal antenna, omnidirectional in azimuth 5GHz: Peak gain 5.5dBi, internal antenna, omnidirectional in azimuth 6GHz: Peak gain 6dBi, internal antenna, omnidirectional in azimuth IoT: Peak gain 2dBi, internal antenna, omnidirectional in azimuth CW9172H 2.4GHz: Peak gain 4dBi, internal antenna, omnidirectional in azimuth 5GHz: Peak gain 7dBi, internal antenna, omnidirectional in azimuth 6GHz: Peak gain 6dBi, internal antenna, omnidirectional in azimuth IoT: Peak gain 1.25dBi, internal antenna, omnidirectional in azimuth |
| Interfaces | CW9172I : 1x100M/1000M/2.5G Multigigabit Ethernet (RJ-45) Uplink Management console port (RJ-45) with default speed of 115200 bps USB 2.0 at 4.5W CW9172H: 1x100M/1000M/2.5G Multigigabit Ethernet (RJ-45) Uplink Management console port (RJ-45) with default speed of 115200 bps 3x100M/1000M Ethernet LAN ports 1xLAN port capable of POE out 1x Passthrough port |
| Incorporated Radios | CW9172I Wi-Fi 7 802.11be on all three radios 2.4GHz + 5GHz + 6GHz (all 2x2:2) or 2.4 GHz (2x2:2) + 5 GHz (4x4:4) Dedicated Scan/aux Radio and IoT (BLE 6) Radio CW9172H Wi-Fi 7 802.11be on all three radios 2.4GHz + 5GHz + 6GHz (all 2x2:2) Dedicated Scan/aux Radio and IoT (BLE 6) Radio |
| Indicators | Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
| Dimensions (WxLxH) | CW9172I (without mounting brackets): 7.8 x 7.8 x 2.1 in. (20 x 20 x 5.3 cm) CW9172H (without mounting brackets): 5.1 x 7.0 x 1.0 in (13 x 18 x 2.6 cm) |
| Weight | CW9172I: 1.9 lb (874g) CW9172H 1.26 lb (572 g) |
| Mounting Brackets | CW9172I: AIR-AP-BRACKET-1 or AIR-AP-BRACKET-2 CW9172H: CW-MNT-H1-00 CW-MNT-H3-00 CW-ACC-DESK1-00 CW-ACC-SPACER1-00 MA-MNT-MR-H1A AIR-AP-BRACKET-W4= |
| Certifications | Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security Bluetooth SIG: Bluetooth Low Energy |
Documentation:
Download the CW9172I (.PDF)
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
