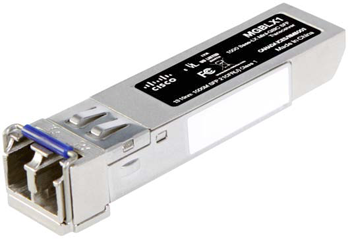

Cisco MFE and MGE SFP Transceivers
Cisco Small Business Network Accessories
Sorry, this product is no longer available, please contact us for a replacement.
More pricing below, click here!
Please Note: All Prices are Inclusive of GST
Overview:
Easily Connect Switches with Fiber Optic Networking Modules
- Adds fiber-optic connectivity to Cisco Small Business and Cisco Small Business Pro Series switches
- High-performance link for connecting networks within a building or small campus area
- Easy removal with an integrated spring latch
- Hot swappable to maintain network availability
Cisco® MFE and MGE Small Form-Factor Pluggable (SFP) or mini Gigabit Interface Converter (mini-GBIC) transceivers are easy-to-install modules that provide a simple way to add fiber connectivity or to add an extra Gigabit Ethernet port to your Cisco Small Business or Cisco Small Business Pro Series switches. The transceivers are available for single-mode or multimode fiber-optic cabling and can support distances from 100 meters up to 40 kilometers.
The Cisco MFE and MGE transceivers provide fast and reliable connectivity between switches that are located on different floors, in separate buildings, or on a small campus network needing connectivity between sites. These transceivers can support both Fast and Gigabit Ethernet applications.
Features
- Built-in spring latch for easy module removal
- Hot swappable
- Low insertion-loss duplex LC receptacle
- Low electromagnetic interference (FCC Part 15, Class B) for clear communications
- Meets FDA and International Electrotechnical Commission (IEC) eye safety standards
Technical Specifications:
| Specifications | |
|---|---|
| Media | MFEBX1: Single-mode fiber (SMF) MFELX1: Single-mode fiber (SMF) MFEFX1: Multimode fiber (MMF) MGBBX1: Single-mode fiber (SMF) MGBLH1: Single-mode fiber (SMF) MGBLX1: Single-mode fiber (SMF) MGBSX1: Multimode fiber (MMF) MGBT1: Category 5e UTP |
| Application | MFEBX1: 100BASE-BX-20U MFELX1: 100BASE-LX MFEFX1: 100BASE-FX MGBBX1: 1000BASE-BX-20U MGBLH1: 1000BASE-LH MGBLX1: 1000BASE-LX MGBSX1: 1000BASE-SX MGBT1: 1000BASE-T |
| Connector type | MFEBX1: Single LC MFELX1: Duplex LC MFEFX1: Duplex LC MGBBX1: Single LC MGBLH1: Duplex LC MGBLX1: Duplex LC MGBSX1: Duplex LC MGBT1: RJ-45 |
| Wavelength typical (Tx) | MFEBX1: 1310 nm MFELX1: 1310 nm MFEFX1: 1310 nm MGBBX1: 1310 nm MGBLH1: 1310 nm MGBLX1: 1310 nm MGBSX1: 850 nm MGBT1: N/A |
| Wavelength range (Rx) | MFEBX1: 1550 nm MFELX1: 1310 nm MFEFX1: 1310 nm MGBBX1: 1490 nm MGBLH1: 1310 nm MGBLX1: 1310 nm MGBSX1: 850 nm MGBT1: N/A |
| Performance | |
| Maximum distance | MFEBX1: up to 20 km MFELX1: up to 10 km MFEFX1: up to 2 km MGBBX1: up to 20 km MGBLH1: up to 40 km MGBLX1: up to 10 km MGBSX1: up to 550 m MGBT1: up to 100 m |
| Average output power | MFEBX1: -20 dBm to -14 dBm MFELX1: -20 dBm to -14 dBm MFEFX1: -15 dBm to -8dBm MGBBX1: -8 dBm to -3 dBm MGBLH1: -4 dBm to 0 dBm MGBLX1: -9.5 dBm to -3 dBm MGBSX1: -9.5 dBm to -4 dBm MGBT1: N/A |
| Receiver sensitivity | MFEBX1: -32 dBm (max) MFELX1: -30 dBm (max) MFEFX1: -34 dBm (max) MGBBX1: -23 dBm (typ) MGBLH1: -25 dBm (typ) MGBLX1: -20 dBm (typ) MGBSX1: -20 dBm (typ) MGBT1: N/A |
| Receiver overload | MFEBX1:-8 dBm (min) MFELX1:-10 dBm (min) MFEFX1: -5 dBm (min) MGBBX1: -3 dBm MGBLH1: -3 dBm MGBLX1: -3 dBm MGBSX1: -0 dBm MGBT1: N/A |
| Environmental | |
| Dimensions W x H x D | MFEBX1: 13 x 9 x 56 mm (0.53 x 0.33 x 2.19 in.) MFELX1: 13 x 9 x 56 mm (0.53 x 0.33 x 2.19 in.) MFEFX1: 13 x 9 x 56 mm (0.53 x 0.33 x 2.19 in.) MGBBX1: 13.4 x 8.5 x 55.7 mm (0.53 x 0.33 x 2.19 in.) MGBLH1: 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.) MGBLX1: 13.4 x 8.5 x 55.7 mm (0.53 x 0.33 x 2.19 in.) MGBSX1: 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.) MGBT1: 13.4 x 8.5 x 66 mm (0.53 x 0.33 x 2.60 in.) |
| Unit weight | 0.018 kg (0.63 oz. ) |
| Power | 1W (max) |
| Operating temperature | 32º to 158ºF (0º to 70ºC) |
| Storage temperature | -40º to 185ºF (-40º to 85ºC) |
| Operating humidity | 10% to 85% noncondensing |
| Storage humidity | 5% to 90% noncondensing |
| Standards | |
| Compliance | FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B |
| Safety | FDA 21 CFR 1040.10 and 1040.11 EN60950, EN (IEC) 60825-1,2 |
| Package Contents | |
|
|
| Minimum Requirements | |
|
|
Documentation:
Download the Cisco MFE and MGE SFP Transceivers Datasheet (PDF).
